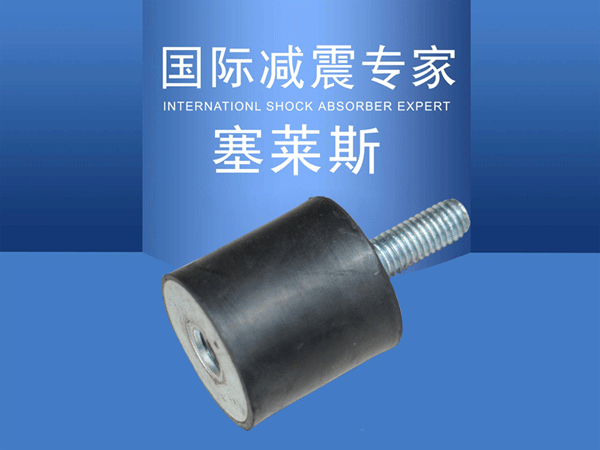

DD型橡膠減振器一端由配螺栓的鋼板，一端內絲鋼板，中間圓柱形橡膠體組成，可壓縮和伸長，具有結構簡單、安裝方便、耐油、耐酸堿、抗老化、耐溫等性能，廣泛應用于電子儀器、儀表、設備柜內，也可用于風機、水泵、冷水機組等。由于上下鋼板完全分離，不需另加附件即可減斷聲橋傳遞，是一種非常實用的減振器，尤其適用于電子儀器儀表。
.gif)
| Item 型號 | D | H | d | M*1 | 橡膠硬度45IRHD(daN/mm) | 橡膠硬度60IRHD(daN/mm) | 橡膠硬度70IRHD(daN/mm) | Maximale statische Einferung適當壓縮量 |
| 1008DD10 | 10 | 8 | M4 | M4*10 | 4.0 | 7.3 | 10.3 | 1.6 |
| 2520DD18 | 25 | 20 | M6 | M6*18 | 10.3 | 18.8 | 25.0 | 4.0 |
| 2520DD20 | 25 | 20 | M8 | M8*20 | 10.3 | 18.8 | 25.0 | 4.0 |
| 2522DD20 | 25 | 22 | M8 | M8*20 | 8.2 | 15.6 | 20.6 | 4.4 |
| 2525DD18 | 25 | 25 | M6 | M6*18 | 6.1 | 11.4 | 15.7 | 5.0 |
| 2525DD20 | 25 | 25 | M8 | M8*20 | 6.1 | 11.4 | 15.7 | 5.0 |
| 2530DD18 | 25 | 30 | M6 | M6*18 | 4.4 | 8.5 | 11.1 | 6.0 |
| 2530DD20 | 25 | 30 | M8 | M8*20 | 4.4 | 8.5 | 11.1 | 6.0 |
| 3015DD20 | 30 | 15 | M8 | M8*20 | 20.9 | 30.3 | 53.6 | 3.0 |
| 3020DD20 | 30 | 20 | M8 | M8*20 | 13.1 | 22.4 | 33.1 | 4.0 |
| 3025DD20 | 30 | 25 | M8 | M8*20 | 8.3 | 14.3 | 19.5 | 5.0 |
| 3030DD20 | 30 | 30 | M8 | M8*20 | 6.0 | 11.2 | 15.0 | 6.0 |
| 3040DD20 | 30 | 40 | M8 | M8*20 | 4.0 | 7.8 | 10.3 | 8.0 |
| 4020DD23 | 40 | 20 | M8 | M8*23 | 26.3 | 49.4 | 68.1 | 4.0 |
| 4020DD25 | 40 | 20 | M10 | M10*25 | 26.3 | 49.4 | 68.1 | 4.0 |
| 4025DD25 | 40 | 25 | M10 | M10*25 | 18.6 | 34.8 | 47.6 | 5.0 |
| 4028DD25 | 40 | 28 | M10 | M10*25 | 15.0 | 27.9 | 38.3 | 5.6 |
| 4030DD23 | 40 | 30 | M8 | M8*23 | 13.1 | 24.6 | 34.2 | 6.0 |
| 4030DD25 | 40 | 30 | M10 | M10*25 | 13.1 | 24.6 | 34.2 | 6.0 |
| 4035DD23 | 40 | 35 | M8 | M8*23 | 10.0 | 18.4 | 25.8 | 7.0 |
| 4035DD25 | 40 | 35 | M10 | M10*25 | 10.0 | 18.4 | 25.8 | 7.0 |
| 4040DD23 | 40 | 40 | M8 | M8*23 | 8.3 | 15.3 | 21.1 | 8.0 |
| 4040DD25 | 40 | 40 | M10 | M10*25 | 8.3 | 15.3 | 21.1 | 8.0 |
| 4045DD25 | 40 | 45 | M10 | M10*25 | 8.3 | 15.3 | 21.1 | 9.0 |
| 5020DD25 | 50 | 20 | M10 | M10*25 | 58.0 | 109.3 | 150.7 | 4.0 |
| 5025DD25 | 50 | 25 | M10 | M10*25 | 40.5 | 75.5 | 104.5 | 5.0 |
| 5030DD25 | 50 | 30 | M10 | M10*25 | 28.0 | 51.6 | 71.2 | 6.0 |
| 5040DD25 | 50 | 40 | M10 | M10*25 | 14.3 | 26.9 | 37.1 | 8.0 |
| 5045DD25 | 50 | 45 | M10 | M10*25 | 11.3 | 21.0 | 29.3 | 9.0 |
| 5050DD25 | 50 | 50 | M10 | M10*25 | 9.1 | 17.3 | 23.8 | 10.0 |
| 6036DD25 | 60 | 36 | M10 | M10*25 | 35.2 | 65.5 | 90.3 | 7.2 |
| 6036DD37 | 60 | 36 | M12 | M12*37 | 35.2 | 65.5 | 90.3 | 7.2 |
| 6040DD25 | 60 | 40 | M10 | M10*25 | 28.9 | 53.7 | 73.1 | 8.0 |
| 6040DD37 | 60 | 40 | M12 | M12*37 | 28.9 | 53.7 | 73.1 | 8.0 |
| 6045DD25 | 60 | 45 | M10 | M10*25 | 23.0 | 42.8 | 59.3 | 9.0 |
| 6045DD37 | 60 | 45 | M12 | M12*37 | 23.0 | 42.8 | 59.3 | 9.0 |
| 6050DD37 | 60 | 50 | M12 | M12*37 | 18.2 | 34.0 | 46.9 | 10.0 |
| 6535DD25 | 65 | 35 | M10 | M10*25 | 44.3 | 82.3 | 114.0 | 7.0 |
| 6545DD37 | 65 | 45 | M12 | M12*37 | 25.8 | 47.5 | 66.0 | 9.0 |
| 6550DD37 | 65 | 50 | M12 | M12*37 | 19.6 | 36.2 | 50.2 | 10.0 |
| 7030DD25 | 70 | 30 | M10 | M10*25 | 72.9 | 135.8 | 185.4 | 6.0 |
| 7035DD25 | 70 | 35 | M10 | M10*25 | 53.1 | 105.9 | 145.9 | 7.0 |
| 7035DD37 | 70 | 35 | M12 | M12*37 | 53.1 | 105.9 | 145.9 | 7.0 |
| 7040DD25 | 70 | 40 | M10 | M10*25 | 42.1 | 78.2 | 107.9 | 8.0 |
| 7040DD37 | 70 | 40 | M12 | M12*37 | 42.1 | 78.2 | 107.9 | 8.0 |
| 7045DD25 | 70 | 45 | M10 | M10*25 | 33.1 | 61.3 | 82.3 | 9.0 |
| 7050DD25 | 70 | 50 | M10 | M10*25 | 26.3 | 49.3 | 68.2 | 10.0 |
| 7050DD37 | 70 | 50 | M12 | M12*37 | 26.3 | 49.3 | 68.2 | 10.0 |
| 7070DD25 | 70 | 70 | M10 | M10*25 | 17.3 | 32.2 | 44.7 | 14.0 |
| 7540DD37 | 75 | 40 | M12 | M12*37 | 45.3 | 84.7 | 116.8 | 8.0 |
| 7550DD37 | 75 | 50 | M12 | M12*37 | 33.4 | 62.7 | 86.6 | 10.0 |
| 7555DD37 | 75 | 55 | M12 | M12*37 | 26.1 | 49.4 | 68.0 | 11.0 |
| 8030DD35 | 80 | 30 | M14 | M14*35 | 115.8 | 219.6 | 302.1 | 6.0 |
| 8040DD35 | 80 | 40 | M14 | M14*35 | 61.8 | 115.3 | 159.7 | 8.0 |
| 8050DD35 | 80 | 50 | M14 | M14*35 | 40.9 | 77.3 | 106.1 | 10.0 |
| 8050DD37 | 80 | 50 | M12 | M12*37 | 40.9 | 77.3 | 106.1 | 10.0 |
| 8060DD35 | 80 | 60 | M14 | M14*35 | 27.4 | 51.5 | 70.6 | 12.0 |
| 10040DD44 | 100 | 40 | M16 | M16*44 | 118.8 | 215.6 | 296.9 | 8.0 |
| 10050DD44 | 100 | 50 | M16 | M16*44 | 71.4 | 128.6 | 178.6 | 10.0 |
| 10055DD44 | 100 | 55 | M16 | M16*44 | 58.5 | 109.6 | 151.1 | 11.0 |
| 10060DD44 | 100 | 60 | M16 | M16*44 | 51.0 | 92.3 | 128.8 | 12.0 |
| 10075DD44 | 100 | 75 | M16 | M16*44 | 32.8 | 58.2 | 80.6 | 15.0 |
