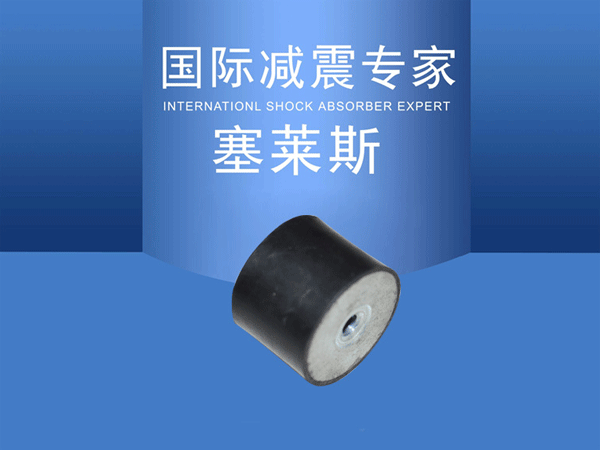

DE型橡膠減振器是由配內絲的上下鋼板，中間圓柱形橡膠組成，可壓縮和伸長，具有結構簡單，安裝方便，耐油、耐酸堿、抗老化、耐溫等性能，廣泛應用于電子儀器、儀表設備柜內，也可用于風機、水泵、冷水機組等。由于上下鋼板完全分離，不需另加附件即可減斷聲橋傳遞，是一種非常實用的減振器，尤其適用于電子儀器儀表。
.gif)
| Item 型號 | D | H | M× L | 橡膠硬度45 IRHD（daN/mm） | 橡膠硬度60HIRD（daN/mm） | 橡膠硬度70IRHD(daN/mm) | Maximale statische Einfederung適當壓縮量 |
| 2015DE06 | 20 | 15 | M6 | 7.9 | 14.8 | 20.5 | 3.0 |
| 2020DE06 | 20 | 20 | M6 | 4.6 | 8.6 | 11.8 | 4.0 |
| 2025DE06 | 20 | 25 | M6 | 3.2 | 3.2 | 3.2 | 5.0 |
| 2030DE06 | 20 | 30 | M6 | 2.2 | 3.8 | 5.4 | 6.0 |
| 2515DE06 | 25 | 15 | M6 | 15.7 | 30.0 | 42.0 | 3.0 |
| 2520DE06 | 25 | 20 | M6 | 10.5 | 19.4 | 25.6 | 4.0 |
| 2525DE06 | 25 | 25 | M8 | 6.2 | 11.9 | 16.2 | 5.0 |
| 2530DE08 | 25 | 30 | M8 | 4.8 | 8.9 | 11.5 | 6.0 |
| 3020DE08 | 30 | 20 | M8 | 12.6 | 24.0 | 32.0 | 4.0 |
| 3030DE08 | 30 | 30 | M8 | 6.1 | 11.5 | 15.4 | 6.0 |
| 3040DE08 | 30 | 40 | M8 | 4.1 | 8.1 | 10.6 | 8.0 |
| 4020DE08 | 40 | 20 | M8 | 26.7 | 50.8 | 73.3 | 4.0 |
| 4028DE08 | 40 | 28 | M8 | 15.4 | 28.3 | 38.8 | 5.6 |
| 4028DE08 | 40 | 28 | M10 | 15.4 | 28.3 | 38.8 | 5.6 |
| 4030DE08 | 40 | 30 | M8 | 13.5 | 25.0 | 35.0 | 6.0 |
| 4030DE08 | 40 | 30 | M10 | 13.5 | 25.0 | 35.0 | 6.0 |
| 4040DE08 | 40 | 40 | M8 | 8.6 | 15.8 | 21.7 | 8.0 |
| 4040DE10 | 40 | 40 | M10 | 8.6 | 15.8 | 21.7 | 8.0 |
| 4045DE10 | 40 | 45 | M10 | 7.3 | 13.7 | 18.8 | 9.0 |
| 5025DE10 | 50 | 25 | M10 | 36.2 | 66.7 | 91.9 | 5.0 |
| 10055DE16 | 100 | 55 | M16 | 59.6 | 110.6 | 153.2 | 11.0 |
| 10060DE16 | 100 | 60 | M16 | 51.9 | 94.2 | 130.8 | 12.0 |
| 15075DE16 | 150 | 75 | M16 | 60.4 | 108.2 | 150.7 | 15.0 |
| 15075DE20 | 150 | 75 | M20 | 60.4 | 108.2 | 150.7 | 15.0 |
| 5030DE10 | 50 | 30 | M10 | 28.4 | 52.4 | 72.0 | 5.0 |
| 5040DE10 | 50 | 40 | M10 | 14.6 | 27.1 | 37.7 | 8.0 |
| 5045DE10 | 50 | 45 | M10 | 11.5 | 21.5 | 30.0 | 9.0 |
| 5050DE10 | 50 | 50 | M10 | 9.3 | 17.8 | 24.2 | 10.0 |
| 6036DE10 | 60 | 36 | M10 | 35.8 | 66.5 | 91.9 | 7.2 |
| 6036DE12 | 60 | 36 | M12 | 32.6 | 60.6 | 83.8 | 7.2 |
| 6040DE10 | 60 | 40 | M10 | 29.4 | 54.9 | 74.6 | 8.0 |
| 6040DE12 | 60 | 40 | M12 | 29.4 | 54.9 | 74.6 | 8.0 |
| 6045DE10 | 60 | 45 | M10 | 23.3 | 43.5 | 60.3 | 9.0 |
| 6045DE12 | 60 | 45 | M12 | 23.3 | 43.5 | 60.3 | 9.0 |
| 6050DE12 | 60 | 50 | M12 | 18.7 | 34.7 | 47.8 | 10.0 |
| 6545DE10 | 65 | 45 | M10 | 26.3 | 48.5 | 67.0 | 9.0 |
| 6545DE12 | 65 | 45 | M12 | 26.3 | 48.5 | 67.0 | 9.0 |
| 6550DE12 | 65 | 50 | M12 | 20.0 | 36.7 | 51.1 | 10.0 |
| 7030DE10 | 70 | 30 | M10 | 74.2 | 137.5 | 187.5 | 6.0 |
| 7030DE12 | 70 | 30 | M12 | 74.2 | 137.5 | 187.5 | 6.0 |
| 7040DE10 | 70 | 40 | M10 | 42.6 | 79.4 | 110.3 | 8.0 |
| 7040DE12 | 70 | 40 | M12 | 42.6 | 79.4 | 110.3 | 8.0 |
| 7045DE10 | 70 | 45 | M10 | 33.3 | 61.5 | 83.8 | 9.0 |
| 7045DE12 | 70 | 45 | M12 | 33.3 | 61.5 | 83.8 | 9.0 |
| 7050DE10 | 70 | 50 | M10 | 27.3 | 50.0 | 69.3 | 10.0 |
| 7050DE12 | 70 | 50 | M12 | 27.3 | 50.0 | 69.3 | 10.0 |
| 7070DE10 | 70 | 70 | M10 | 17.7 | 32.8 | 45.3 | 14.0 |
| 7070DE12 | 70 | 70 | M12 | 17.7 | 32.8 | 45.3 | 14.0 |
| 7540DE12 | 75 | 40 | M12 | 46.2 | 85.3 | 117.6 | 8.0 |
| 7550DE12 | 75 | 50 | M12 | 34.1 | 63.6 | 88.6 | 10.0 |
| 7555DE12 | 75 | 55 | M12 | 26.5 | 50.0 | 69.4 | 11.0 |
| 8040DE14 | 80 | 40 | M14 | 62.9 | 117.6 | 161.8 | 8.0 |
| 8050DE12 | 80 | 50 | M12 | 42.0 | 78.4 | 108.0 | 10.0 |
| 8050DE14 | 80 | 50 | M14 | 42.0 | 78.4 | 108.0 | 10.0 |
| 8060DE14 | 80 | 60 | M14 | 27.8 | 51.9 | 71.3 | 12.0 |
| 10040DE16 | 100 | 40 | M16 | 121.9 | 218.8 | 303.1 | 8.0 |
| 10050DE16 | 100 | 50 | M16 | 72.6 | 131.0 | 1810.0 | 10.0 |
